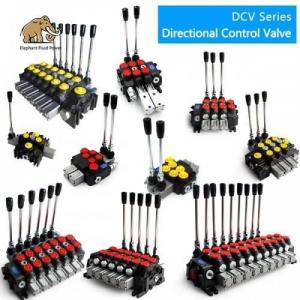

DCV directional control valve is designed for high pressure hydraulic system such as drilling machine,sanitation,etc.
We have more distributor hydraulics (Directional control valve) for you, we produce, manufacture, export, provide you with high quality, low price products, our products are very competitive, no matter what control method (Control type: manual, joystick, cable, pneumatic, solenoid, electro-pneumatic, electro-hydraulic, etc.) you need, any flow (40 liters - 140 liters available), any size (1 spool to 12 spool available), Please contact us for the best offer.
Specifiioins
| Norminal Flow | 100L/min |
| Max Flow | 26gallon |
| Max Pressure | 31.5mpa |
| Control Type | manual, pneumatic, hydraulic, electro-hydraulic |
| Allowed back pressure | ≤1 mpa |
| Oil port size | customizable |
| operating range | 15-75mm2/s |
| viscosity | min 12mm2/s, max 400mm2/s |
| ambient temperature range | -40-80°C |
| structure | sectional 1-12sections |
Characteristic:
Auxiliary valve: over-load valve, anti-cavitation valvecombined valve, etc. (not for DCV40-45)
Control type: manual, joystick, cable, pneumatic, solenoid,electro-pneumatic, electro-hydraulic, etc.
Structure: monoblock, sectional
Carry-over port as hydraulic source for other parts.
